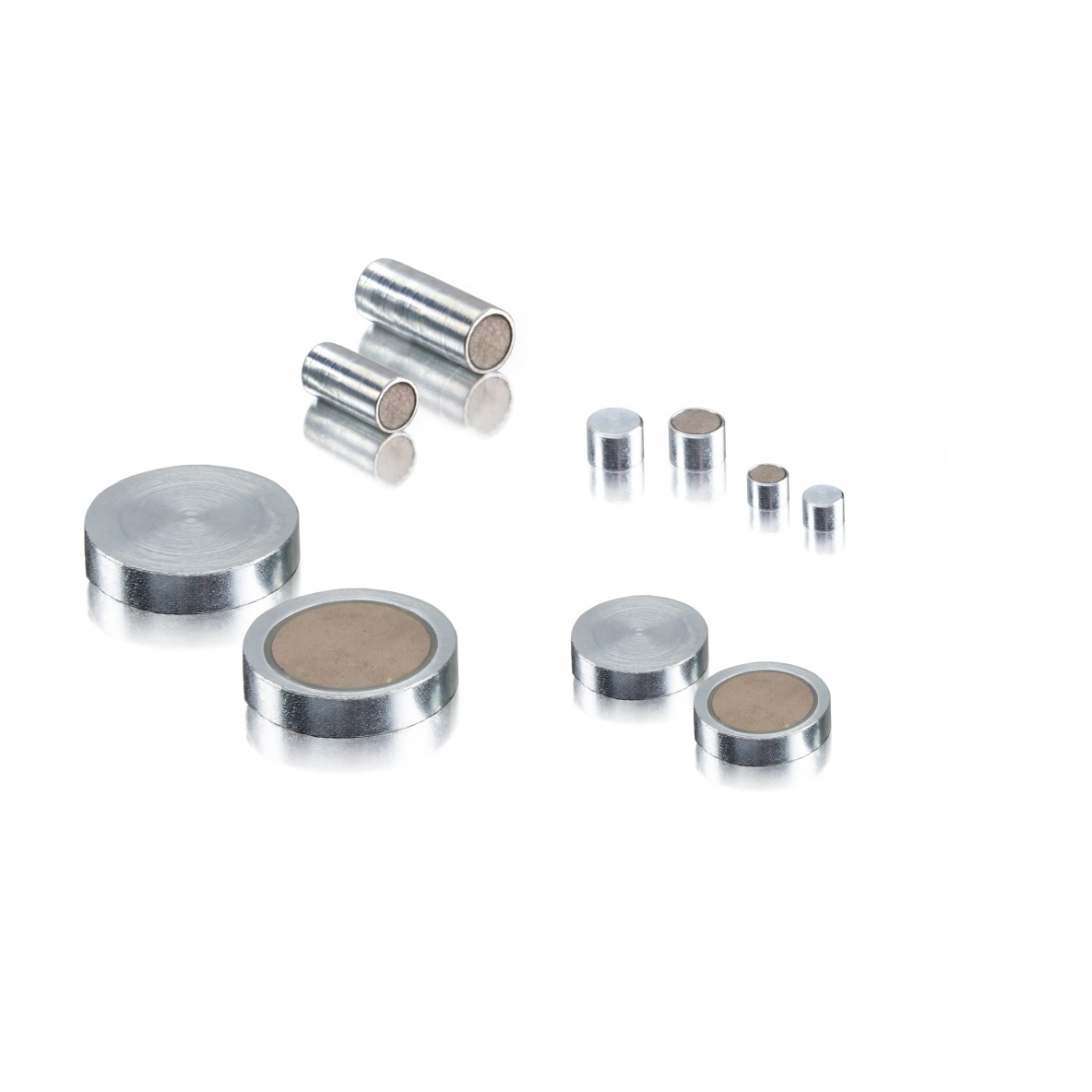

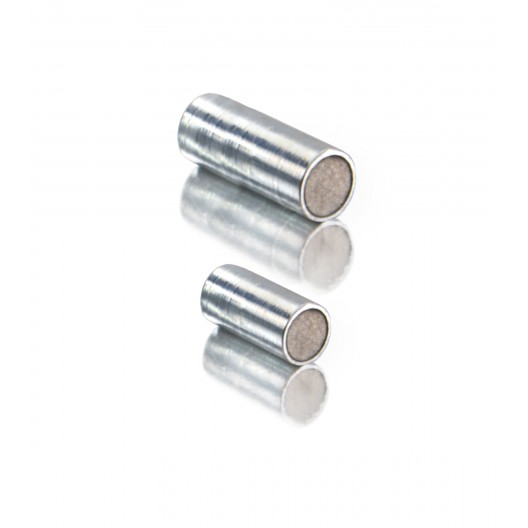

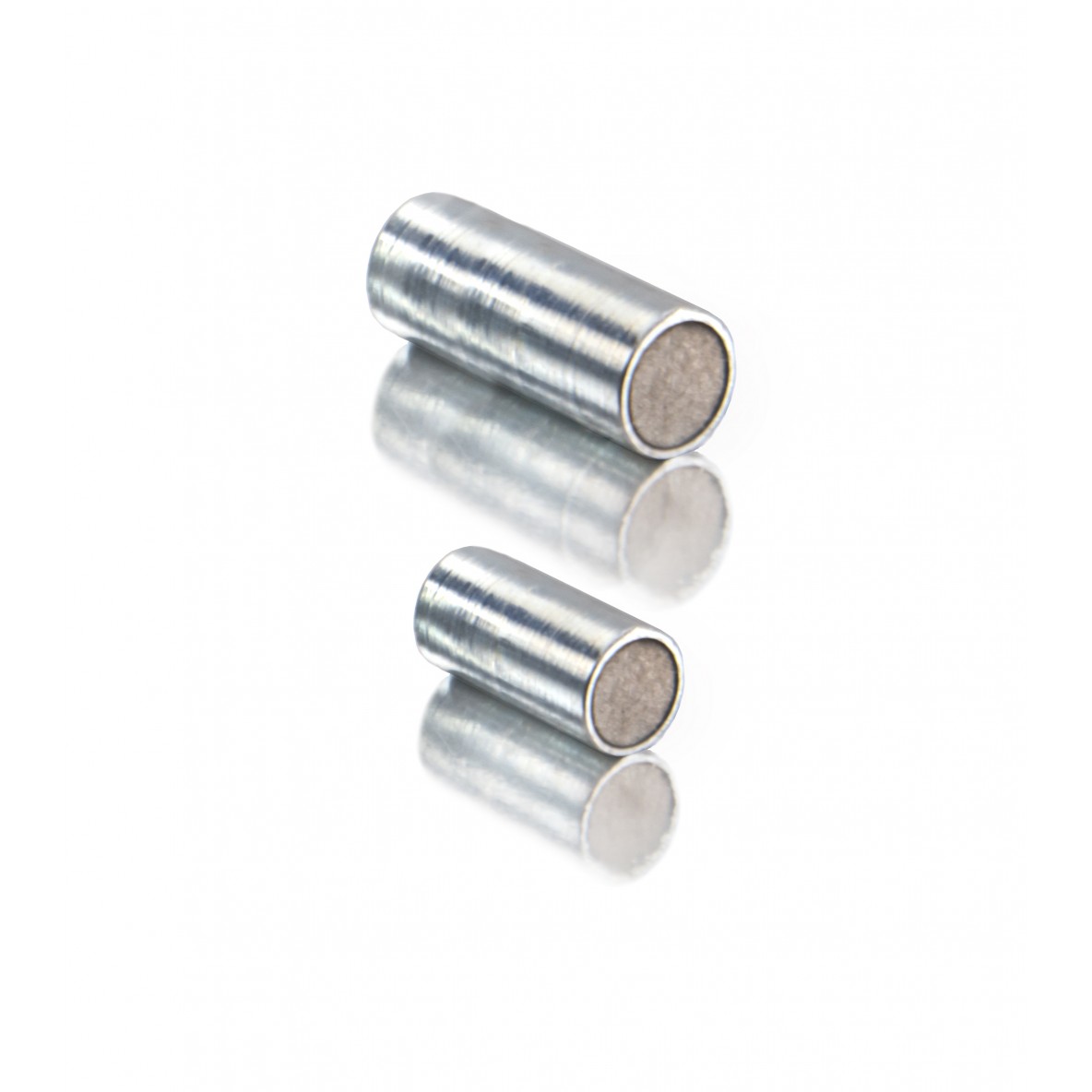

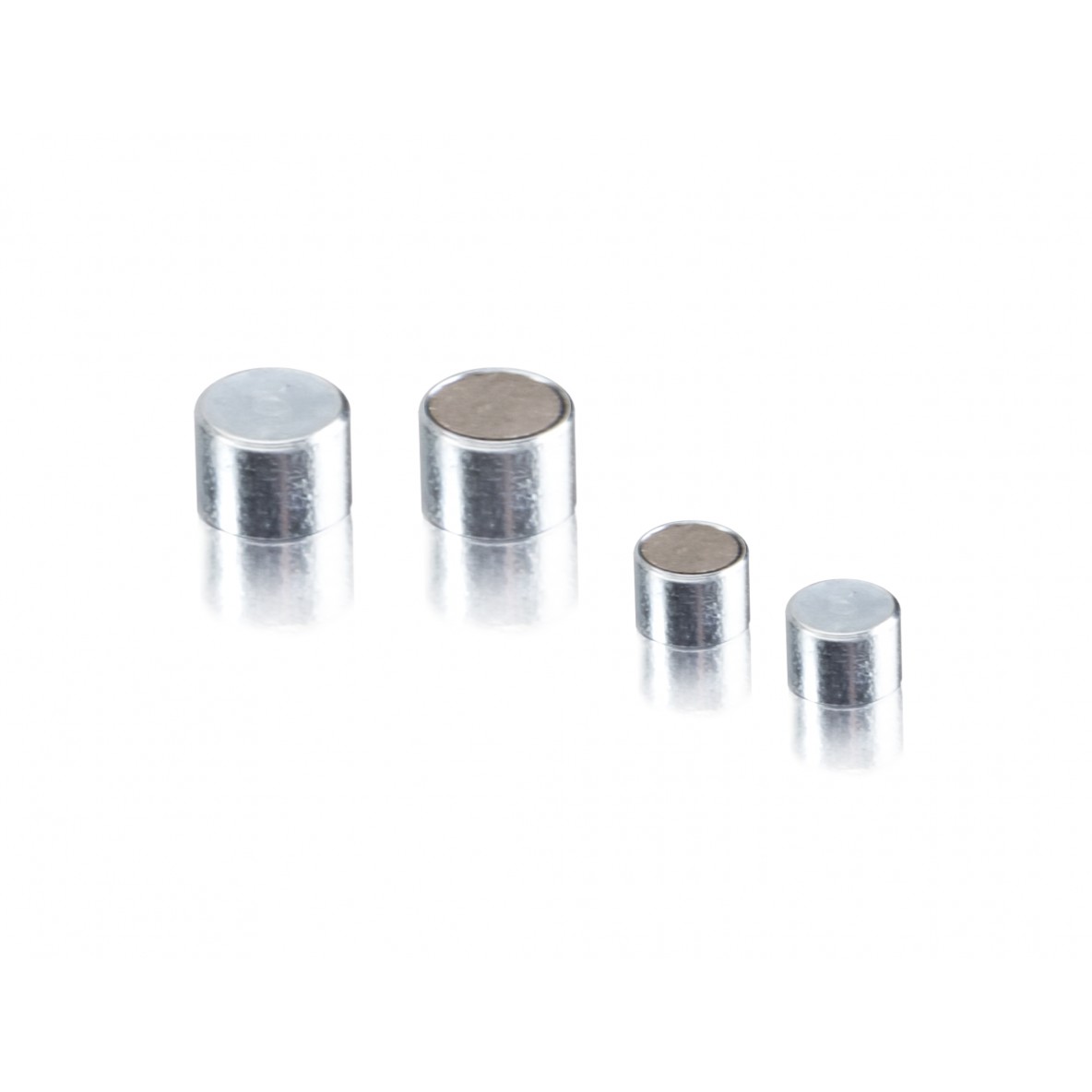

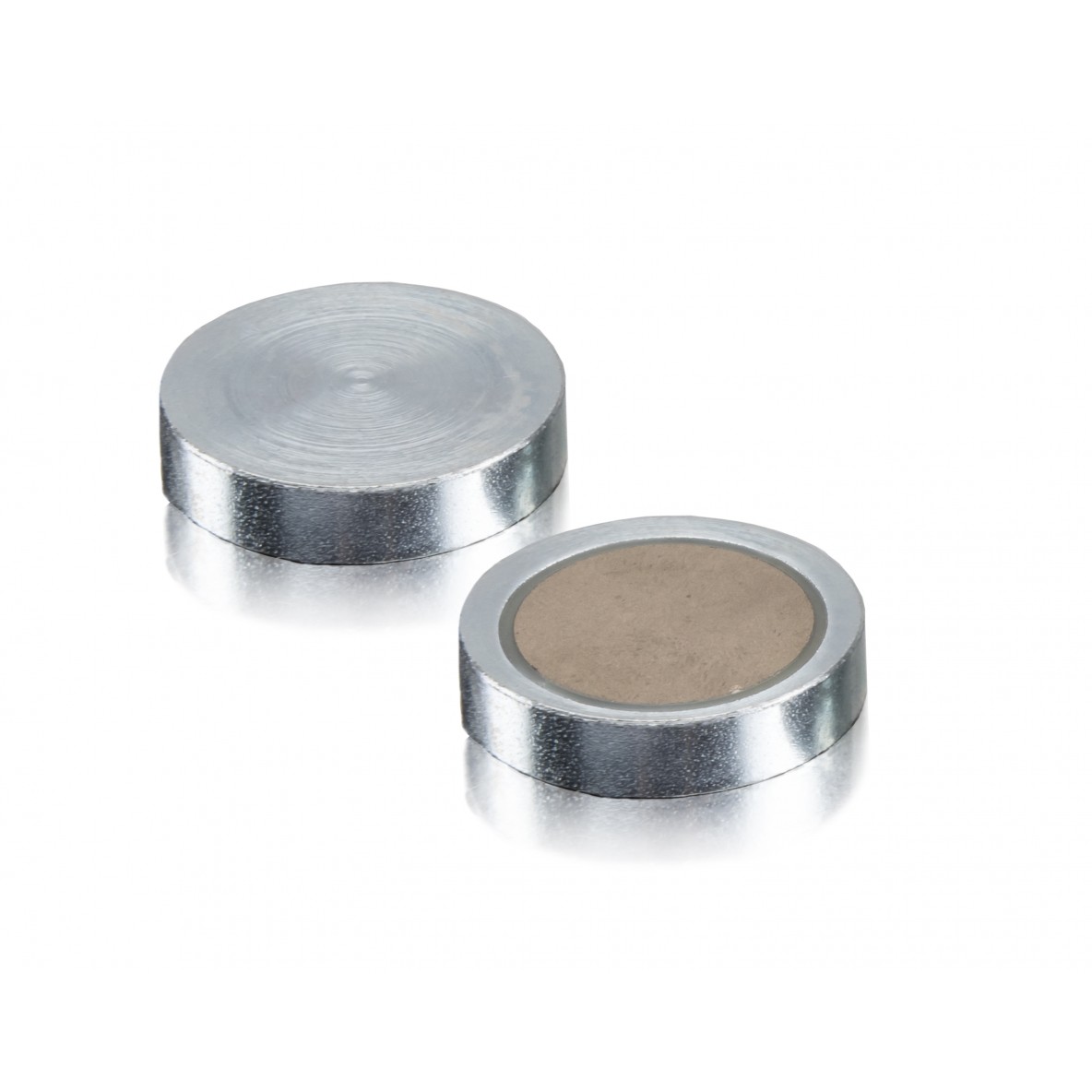

Samarium-Cobalt pot magnets without threaded hole
Samarium pots without threaded holes are metal magnets used in various applications such as fixing and positioning of parts, devices, tools, etc.
€6.961
VAT excluded
/ 81 pièces
Professional rates :
log in
Volume discounts
| From 81 | €6.961/ piece |
| From 41 | €7.06/ piece |
| From 21 | €7.24/ piece |
| From 11 | €7.53/ piece |
| From 6 | €8.00/ piece |
| From 3 | €8.949/ piece |
| Prix à l'unité | €12.30 la pièce |
| Contact us for larger quantities | |
Main features :
- Shape: round
- Samarium and Cobalt core
- Working temperature limits: 200°C
- Resistant to corrosion, rust and demagnetisation
- High energy density
- Various applications: fixing and positioning of parts, devices, tools, moulds, closures, etc.
The core of the stud without a threaded hole is a magnet housed in a magnetic cap whose function is to focus the entire flux of the magnet on the active face.
Drilling and tapping should be avoided.
The fixing is done by gluing for the studs without threaded axis.
The mechanical strength is good due to the mild steel cover of the magnets.
