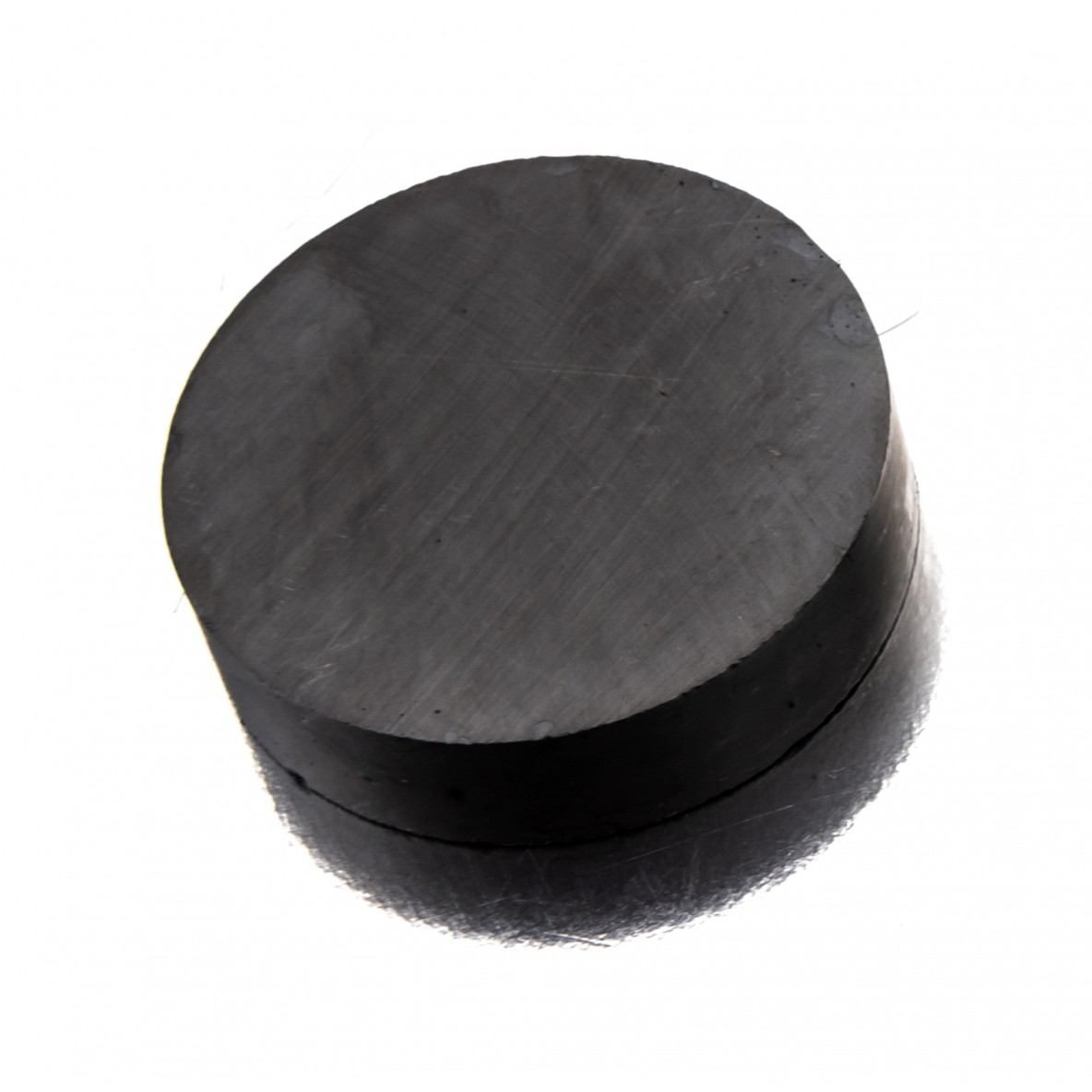

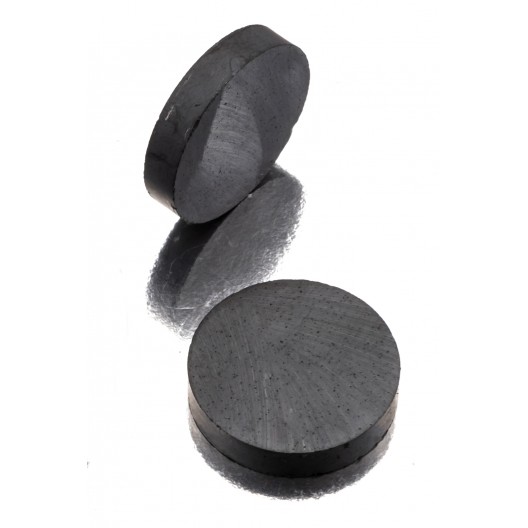

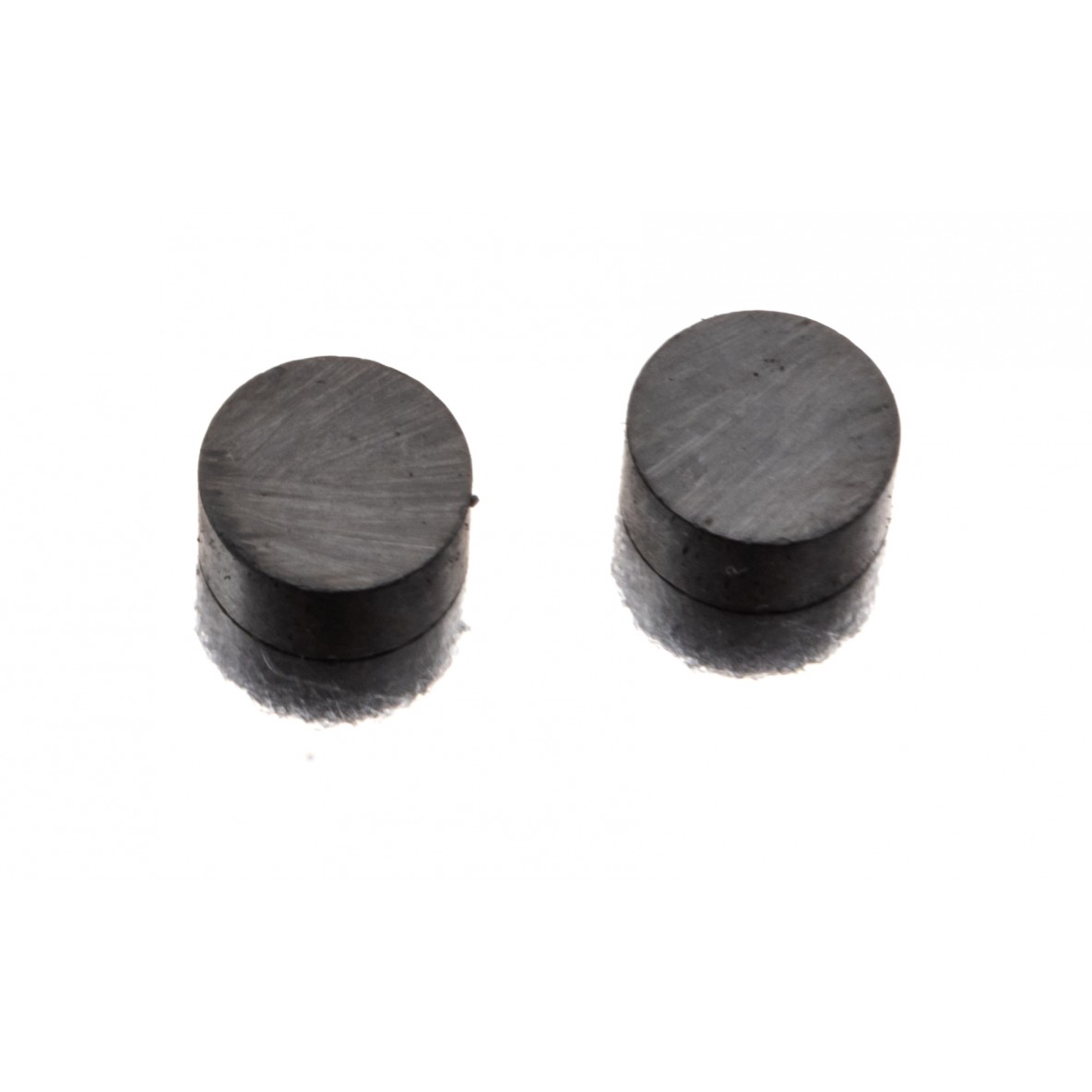

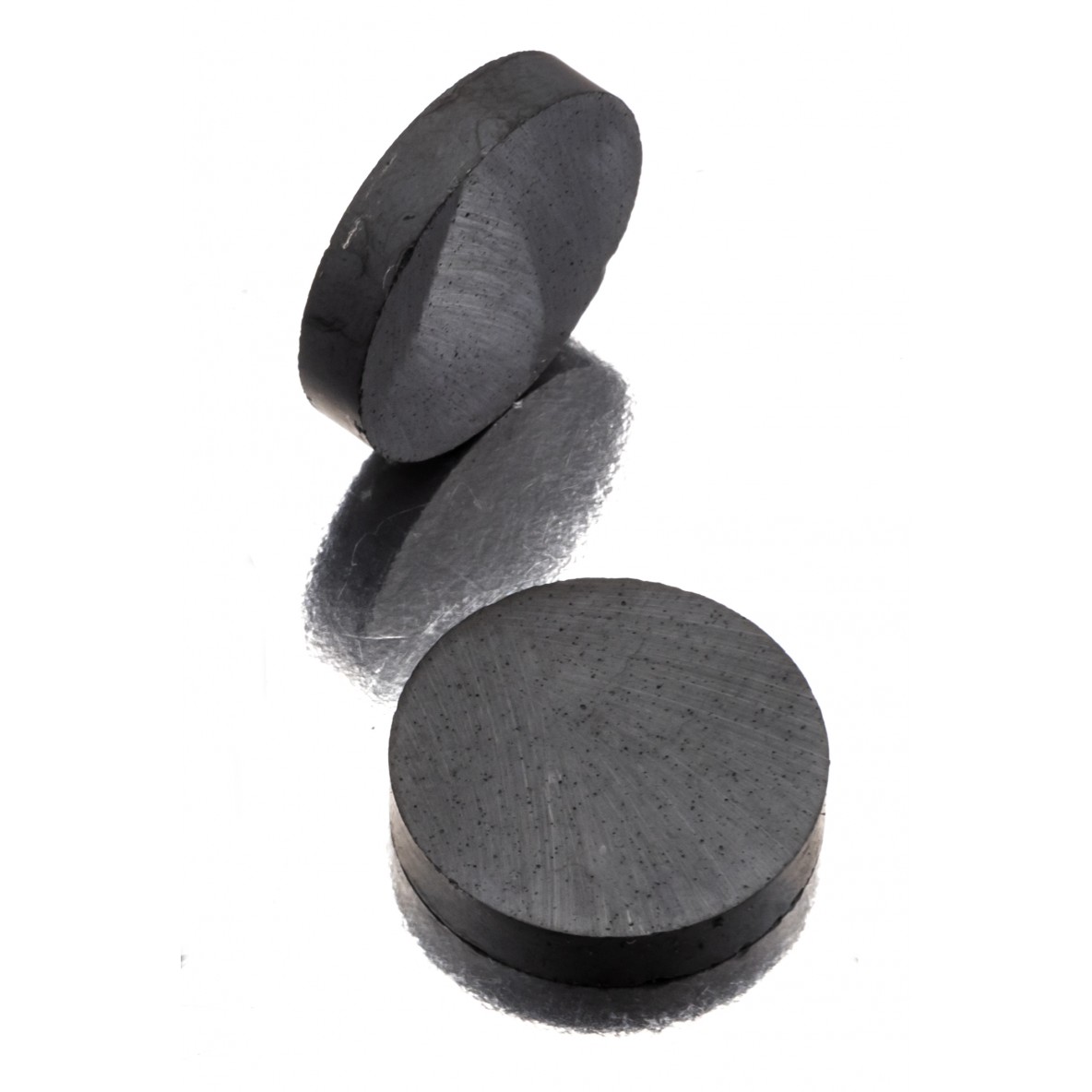

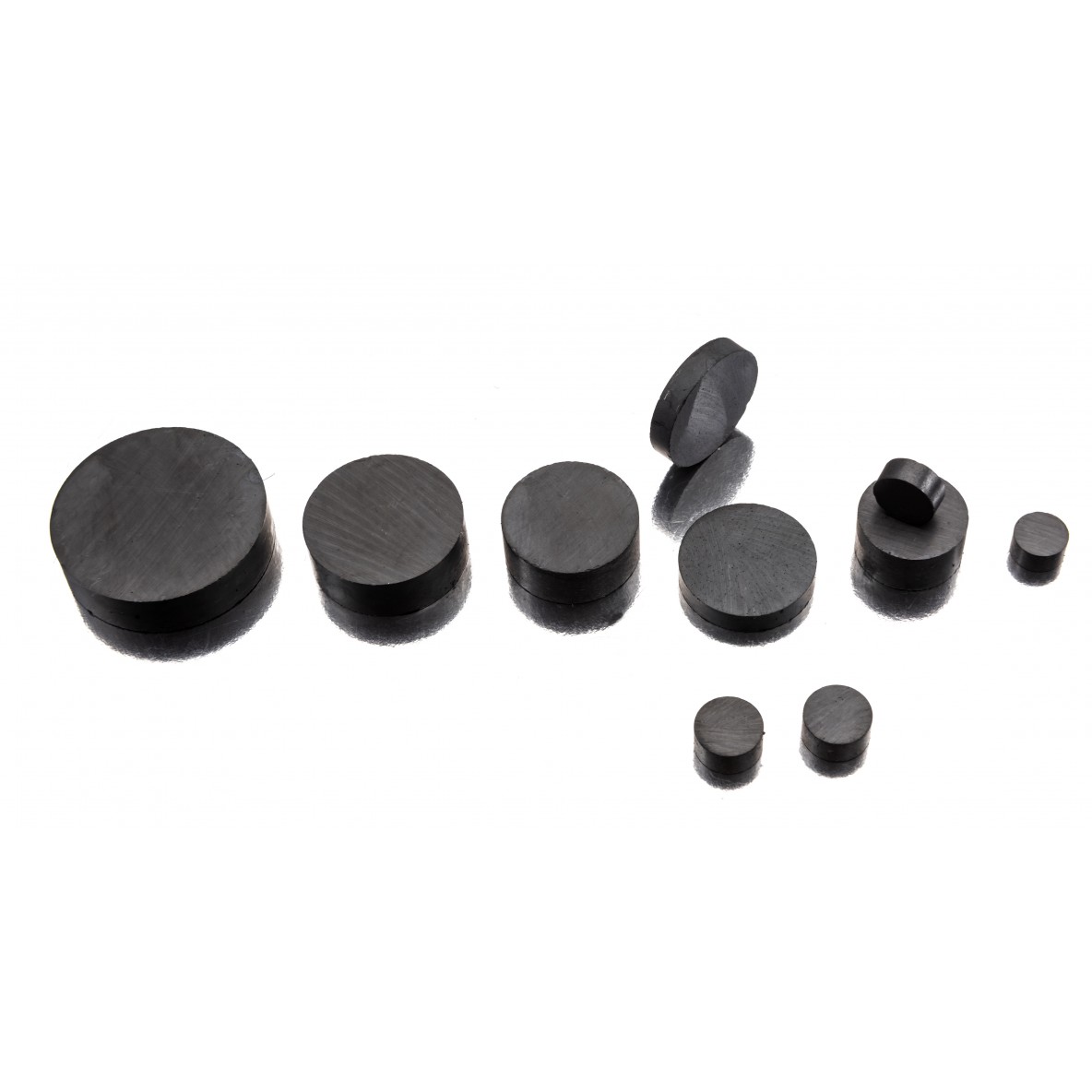

Ferrites magnetic disks
Ferrite disks are metal magnets used in various applications in actuators, motors, etc.
€0.02
VAT excluded
/ 2001 pièces
Professional rates :
log in
Volume discounts
| From 2001 | €0.02/ piece |
| From 1001 | €0.03/ piece |
| From 501 | €0.04/ piece |
| From 201 | €0.07/ piece |
| From 81 | €0.15/ piece |
| From 41 | €0.25/ piece |
| From 21 | €0.42/ piece |
| From 11 | €0.72/ piece |
| From 6 | €1.19/ piece |
| From 3 | €2.13/ piece |
| Prix à l'unité | €5.49 la pièce |
| Contact us for larger quantities | |
Main features :

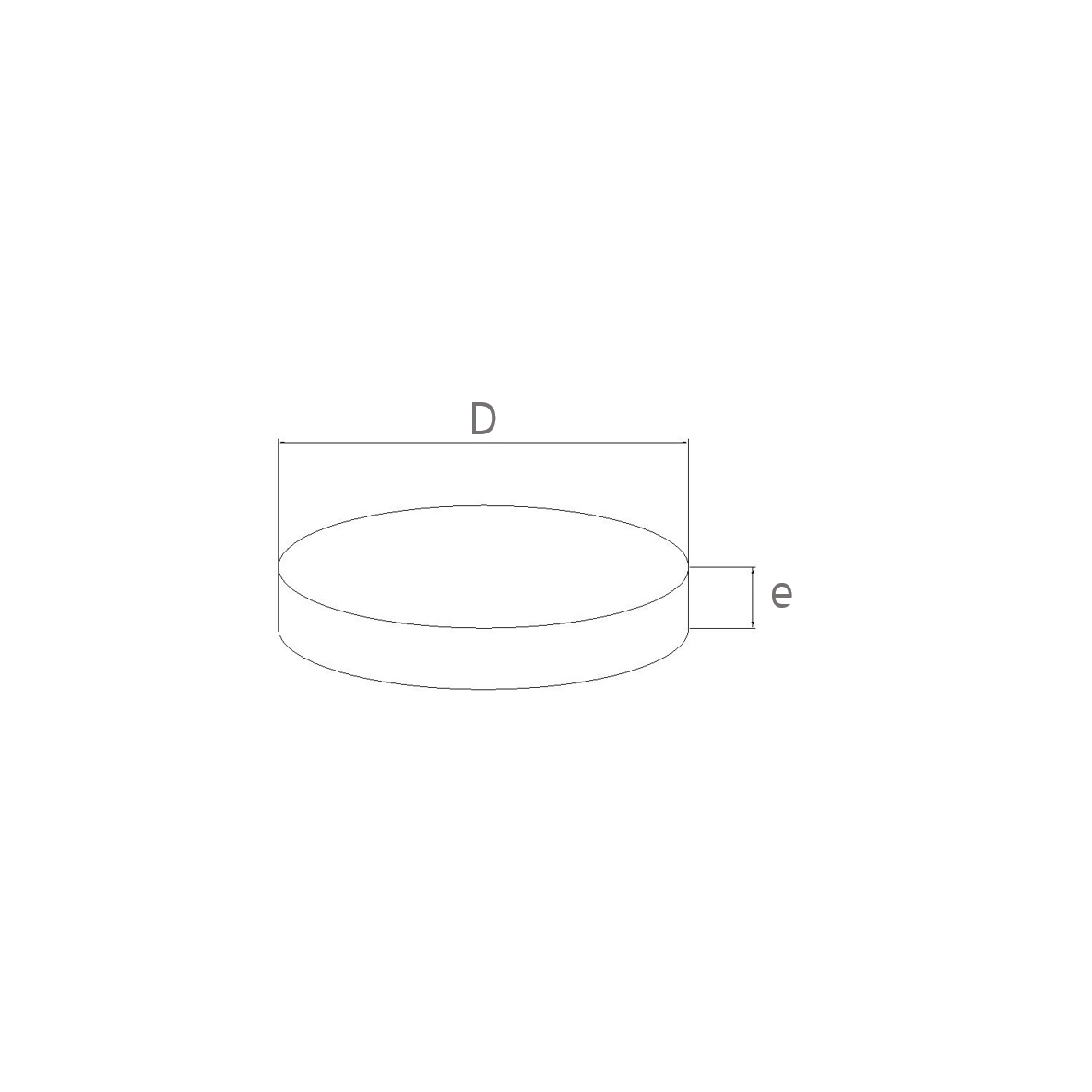

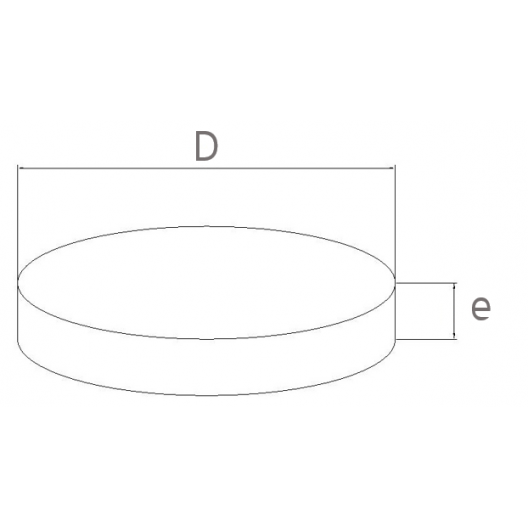

- Shape: round
- Composed of iron oxide and strontium
- Maximum operating temperature: 150°C
- Resistant to oxidation and demagnetisation
- Good energy/cost ratio
- Various applications: fixing, detection, sensors, actuators, motors, etc.
Ferrite disks are ceramic magnets with flat and round faces. Composed of strontium carbonate, we offer multipolar discs with one side magnetised with a marking of the magnetised side or discs magnetised according to thickness.
Ferrite discs cannot be machined, they must not be cut or drilled. Ferrites are very fragile materials and must be handled with care. The assembly is done by gluing.
